ASC200N1200,1200V國產SiC碳化硅MOS管車規級 200A 100A 60A 30A

ASC200N1200MT4ASC100N1200MDSASC100N1200MDSKASC100N1200MT3ASC100N1200MT4ASR16N1200MD02ASC100N1200MT4PBASR20N1200MD02PBASC75N1200MT4PBASC60N1200MT4iASC60N1200MT3ASC60N1200MT4ASC60N1200MT4PBASC60N1200MT7...

型號：

ASC200N1200

ASC100N1200

ASC60N1200

ASC30N1200

ASC20N1200

ASR160N1200

品牌：AST

參考價：電詢庫存：99999++

數 量：

產品描述：

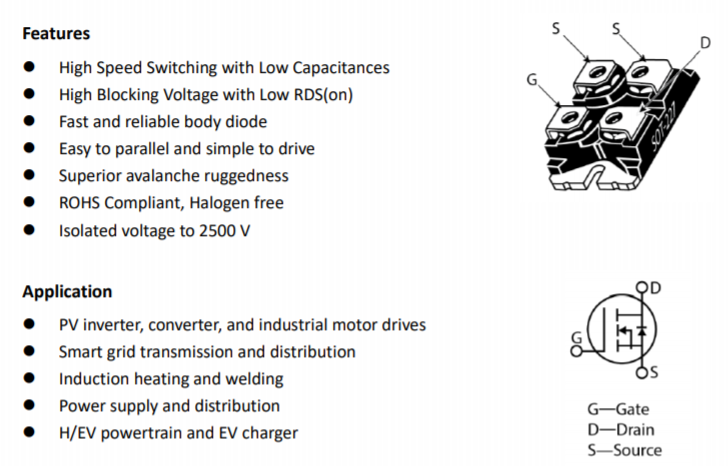

碳化硅(SiC) MOSFET使用一種全新技術，與硅相比，該技術提供了卓越的開關性能和更高的可靠性。此外，低導通電阻和緊湊的芯片尺寸確保了低電容和柵極電荷。因此，系統優勢包括最高效率、更快的工作頻率、更高的功率密度、更低的EMI和更小的系統尺寸。

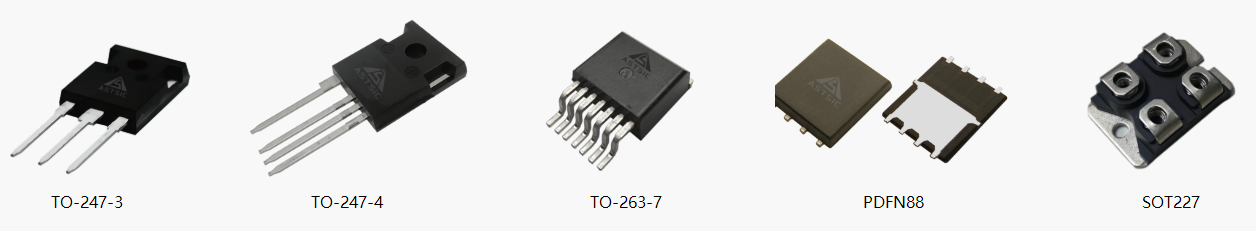

Model Name	R(on)	Current	Vgs	Package	Status
ASC200N1200MT4	8mohm	200A	18V	TO-247-4	Product
ASC100N1200MDS	16mohm	100A	18V	SOT227	Product
ASC100N1200MDSK	16mohm	100A	18V	SOT227	Product
ASC100N1200MT3	16mohm	100A	18V	TO-247-3	Product
ASC100N1200MT4	16mohm	100A	18V	TO-247-4	Product
ASR16N1200MD02	16mohm	100A	18V	TOLL	Product
ASC100N1200MT4PB	20mohm	100A	15V	TO-247-4	Product
ASR20N1200MD02PB	20mohm	100A	15V	TOLL	Product
ASC75N1200MT4PB	30mohm	75A	15V	TO-247-4	Development
ASC60N1200MT4i	45mohm	60A	18V	TO-247-4	Product
ASC60N1200MT3	45mohm	60A	18V	TO-247-3	Product
ASC60N1200MT4	45mohm	60A	18V	TO-247-4	Product
ASC60N1200MT4PB	45mohm	60A	15V	TO-247-4	Product
ASC60N1200MT7	45mohm	60A	18V	TO-263-7	Product
ASR45N1200MD02	45mohm	60A	18V	TOLL	Product
ASR50N1200MD88	50mohm	60A	18V	PDFN8*8	Product
ASC30N1200MT3	80mohm	30A	18V	TO-247-3	Product
ASC30N1200MT4	80mohm	30A	18V	TO-247-4	Product
ASC30N1200MT4PB	80mohm	30A	15V	TO-247-4	Product
ASC30N1200MT7	80mohm	30A	18V	TO-263-7	Product
ASR80N1200MD02	80mohm	30A	18V	TOLL	Product
ASR80N1200MD88	80mohm	30A	18V	PDFN8*8	Product
ASC20N1200MT3PB	160mohm	20A	15V	TO-247-3	Product
ASC20N1200MT4PB	160mohm	20A	15V	TO-247-4	Product
ASC20N1200MT7PB	160mohm	20A	15V	TO-263-7	Product
ASR160N1200MD02PB	160mohm	20A	15V	TOLL	Product
ASR160N1200MD88PB	160mohm	20A	15V	PDFN8*8	Product

上一個：ASR320N650MD,國產SiC碳化硅MOS管 650V 8A 車規級 PDFN 下一個：ASC100N1700,1700V 國產SiC碳化硅MOS管車規級 100A 40A 5A
